Motorized boats SP540 and ferry boats is developed on basic of Sport boat series. They have front seat and luxury rear seat design. Boat design is similar to Highfield sport inflatable boat. Boat tube and boat hull color are customized. Aluminum fishing boat SP540 has rear seat design. this model has complete accessories and top quality.
Product name :
Ferry Boats Motorized Boats SP540 Zodiac Boats Aluminum Fishing Boat Rubber Dinghy Motor BoatsModel :
SP540Legnth :
540CM/17'72''Width :
246CM/8'Tube diameter :
53CM/21''Chamber number :
5Max. power :
90HPMax. passenger :
10Max. loading :
1035KGMOQ :
1PCHS code :
89031900Boat tube color :
White,light gray,dark gray,black,orange,red,green,yellow,green,blueBoat hull color :
White,gray,black,orange,redProduct Name
Ferry Boats Motorized Boats SP540 Zodiac Boats Aluminum Fishing Boat Rubber Dinghy Motor Boats
Brief Introduction
The double hull tender sized from 360cm to 1150cm, we call Sport boat. Sport boats are made of 3mm-5mm thick powder coated marine grade aluminum for boat hull and 1100 Dtex pvc fabric or hypalon fabric for inflatable tube. Luxury bass boat is updated boat series with front seat and luxury rear seat.
Standard Features
|
• High tensile chromated&powder coated aluminum hull |
|
Optional Features
• Hydraulic steering system & steering wheel
• Rear platform with ladder
• Front sundeck
• Boat trailer
• T-Top
• Boat cover
• Shower system
• Live fish well
• Electric inflating pump
• Rear table
• Electric windlass
• 8KG stainless steel anchor and 8mm anchor chain
• Compass
• VHF set
• Blue tooth speaker system
• Garmin/Lowrance/Simrad GPS and sounder
• Searching light
• Yamaha or Mercury engine
Specification
|
Overall length |
Overall width |
Internal width |
Tube diameter |
Chamber |
Net weight |
Max power |
Max people |
Max loading(kg) |
|
|
cm |
cm |
cm |
cm |
room |
kg |
hp |
P |
kg |
|
|
SP520 |
520cm/17’ |
246cm/8’ |
130cm/4’3’’ |
53cm/21’’ |
5 |
480 |
90 |
10 |
1035 |
|
SP560 |
560cm/18’4’’ |
246cm/8’ |
130cm/4’3’’ |
53cm/21’’ |
5 |
540 |
115 |
11 |
1130 |
|
SP600 |
600cm/19’9’’ |
256cm/8’5’’ |
140cm/4’7’’ |
53cm/21’’ |
6 |
600 |
150 |
12 |
1275 |
|
SP660 |
660cm/21’8’’ |
256cm/8’5’’ |
140cm/4’7’’ |
53cm/21’’ |
6 |
670 |
200 |
13 |
1405 |
|
SP700 |
700cm/23’ |
266cm/8’9’’ |
150cm/4’11’’ |
53cm/21’’ |
6 |
800 |
250 |
14 |
1500 |
|
SP760 |
760cm/25’ |
297cm/9’9’’ |
175cm/5’9’’ |
56cm/22’’ |
6 |
920 |
300 |
15 |
1700 |
|
SP860 |
860cm/28’3’’ |
307cm/10’ |
185cm/6’ |
56cm/22’’ |
6 |
1395 |
500 |
17 |
2106 |
|
SP960 |
960cm/31’6’’ |
307cm/10’ |
185cm/6’ |
56cm/22’’ |
8 |
1700 |
700 |
18 |
2500 |
|
SP1150 |
1150cm/37’9’’ |
370cm/12’2’’ |
240cm/7’10’’ |
60cm/24’’ |
8 |
2200 |
700 |
20 |
3000 |
Character of highfield sport 540
The SP540 rigid inflatable boat adopts a high‑tensile chromated and powder‑coated aluminum hull, with tube options of PVC, Taiwan hypalon or Orca hypalon.
Built‑in practical configurations include integrated transom supports, inner keel and a 120L integrated fuel tank. It is fitted with a lockable bow locker, flush‑mount non‑return valves, self‑draining and safety valves, lifting points and towing eyes, as well as anti‑slip EVA pads and a full‑length keel guard.
Featuring a middle console with windshield and front seat, cushioned middle and rear seats, anchor holder/bollard, aluminum roll bar with navigation lights, bilge pump, a pair of aluminum oars, foot pump and repair kit, this RIB is well‑equipped for comfortable and safe on‑water trips.

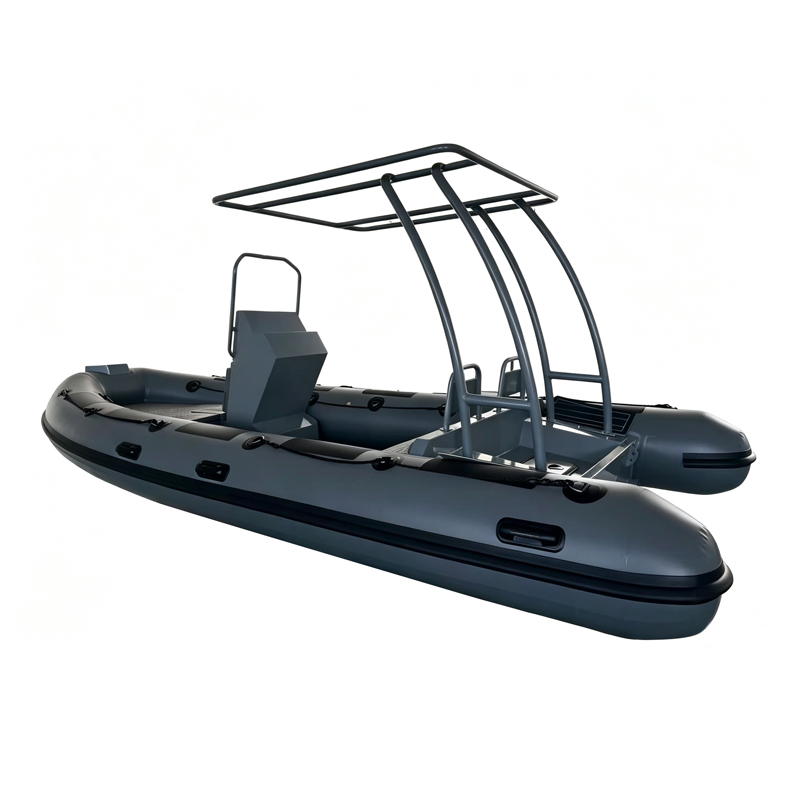

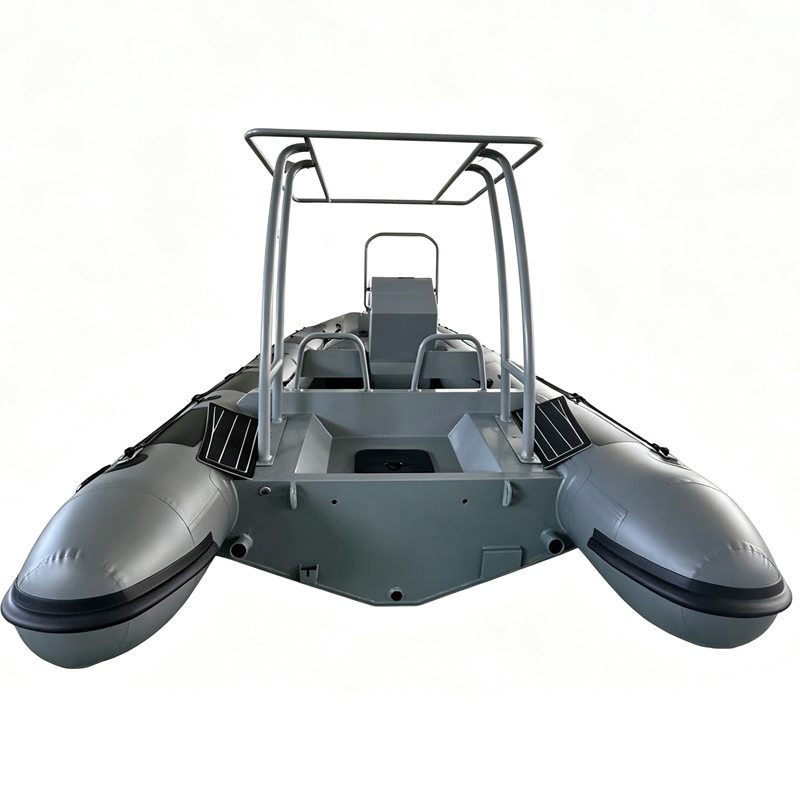

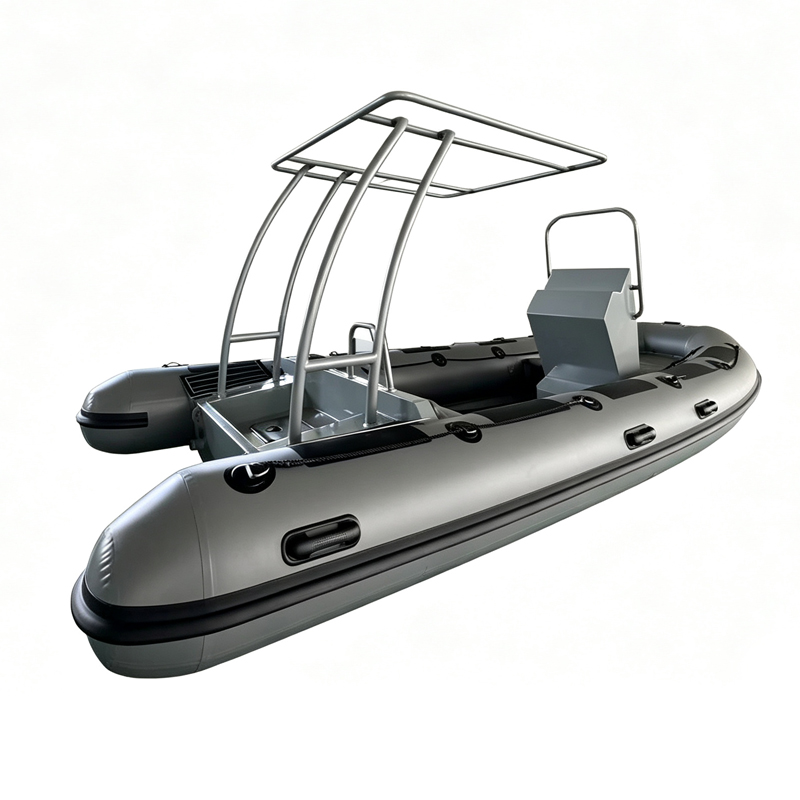

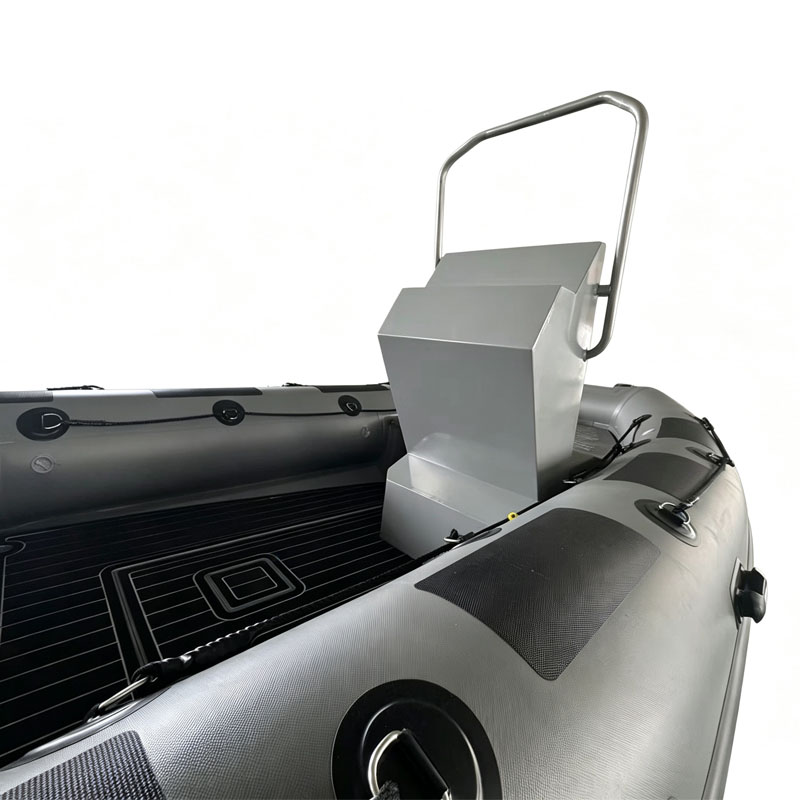

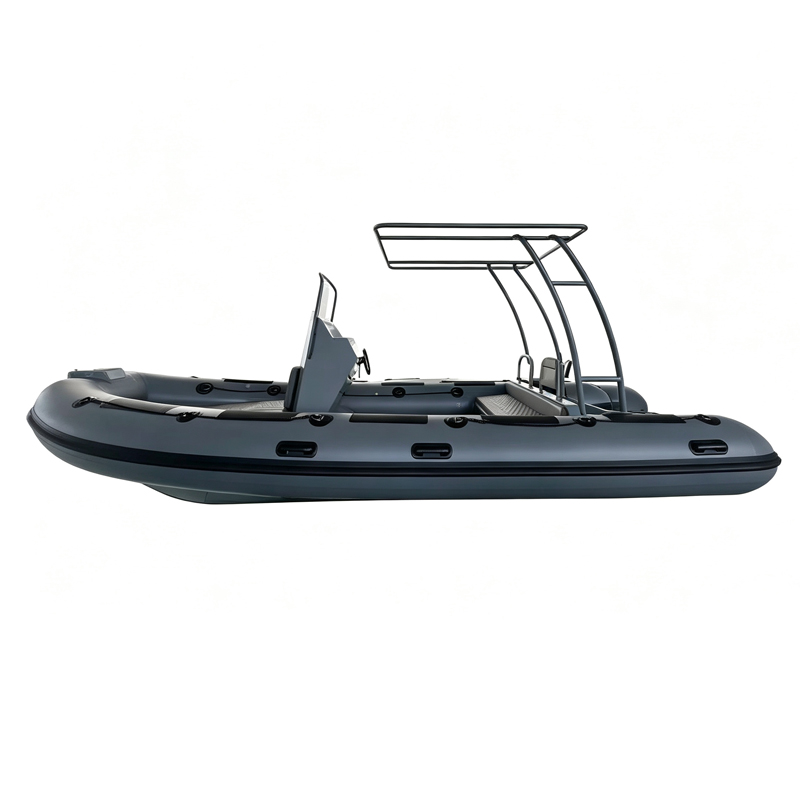

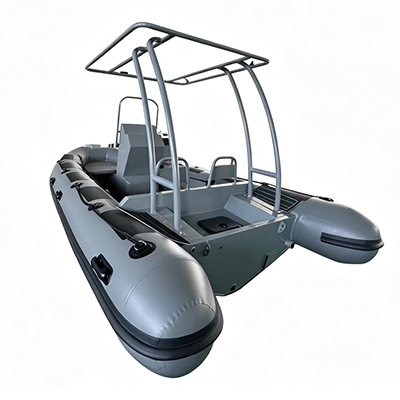

Aluminium rib boat pictures

Qingdao Colton Yacht Co.,Ltd is a professional manufacturer specializing in aluminum rib boat, fiberglass rib boat, aluminum boat, inflatable catamaran boat, customized inflatable boat with superior quality and competitive prices. Strict design, skilled workmanship and thoughtful service are our main principles.
1.12 years experience of producing and exporting boats
2.We have skilled technicians and workers to produce the products with best workmanship.
3.We have strict quality control system and inspection workers.For every boat, it would go through at least 3 period quality inspection.
4.15 days leading time for sample.
5.OEM order.
6. All kinds of accessories with superior quality to meet your any requirements.
7. Well-trained and experienced staffs to answer all your inquires in fluent English within 24 hours
8.We signed contract with a few shipping companies and express companies. So we could get discount shipping cost and help clients save cost.
9.CE and ISO Certification.

Aluminum RIB Boat Series

Production process of aluminum hull

Production process of inflatable tube

CE certificate

Package&loading
Welcome to visit us

Package&loading
